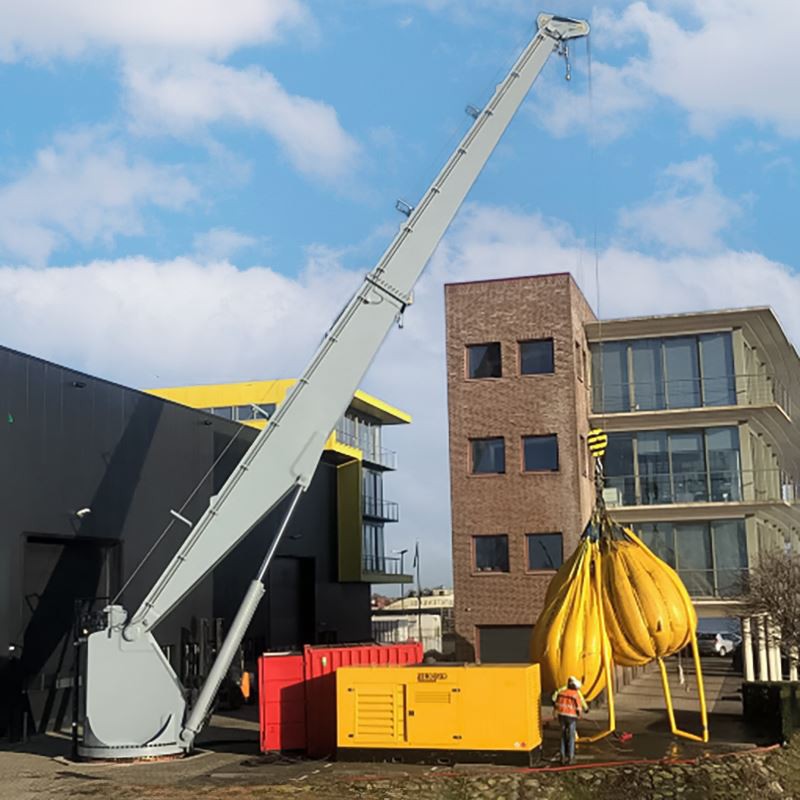

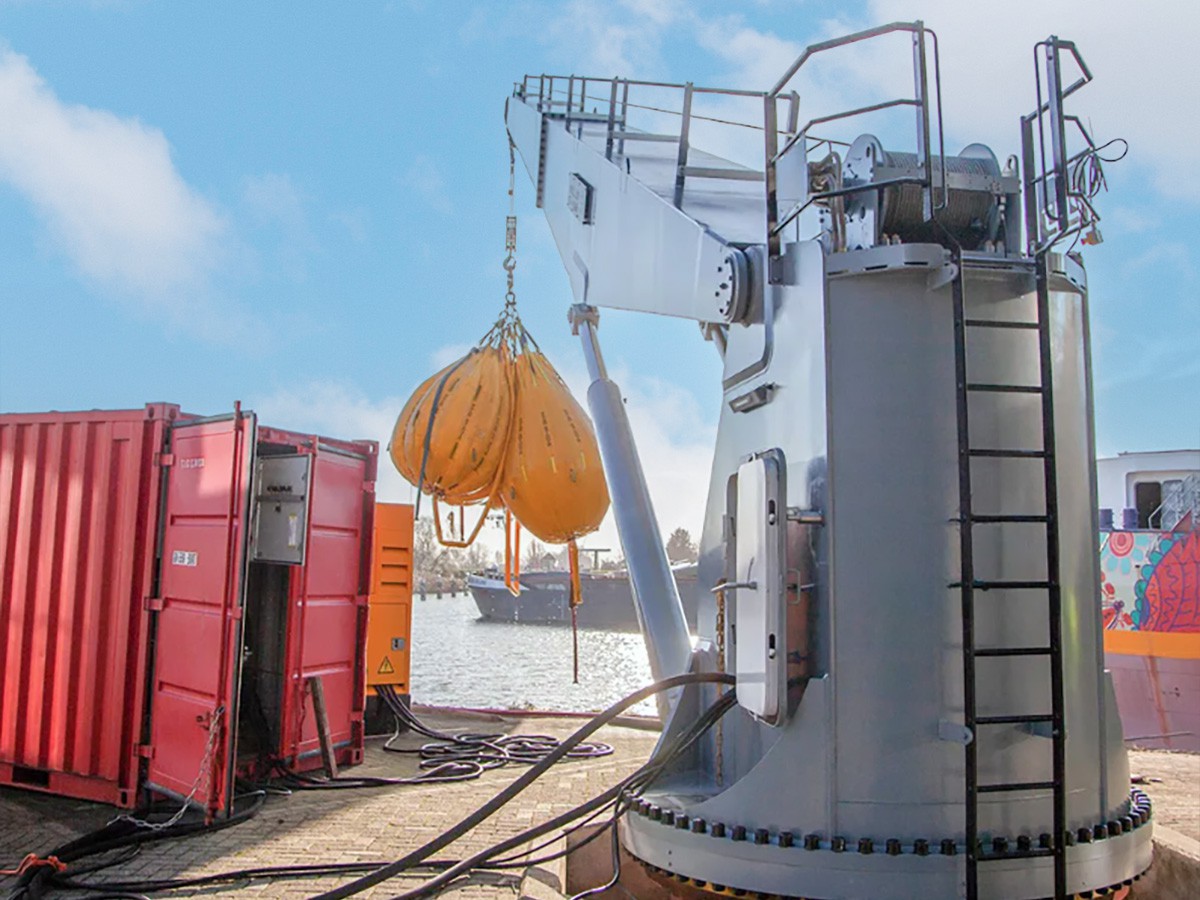

Jib Lawj Crane
– Kev daws teeb meem thiab hloov tau cov kev daws teeb meem rau kev thauj khoom ntawm caj dab thauj khoom thiab kev thauj khoom
Lub Jib Lawj Crane yog kev ua tau zoo marine lawj crane tsim rau cov nkoj, pob zeb ntug dej hiav txwv, thiab chaw nres nkoj.
Nrog nws cov qauv muaj zog, yoog raws kev ua haujlwm zoo, thiab kev ua haujlwm zoo li cov haujlwm thauj khoom xws li thauj khoom thauj khoom xws li thauj khoom, khoom siv, thiab cov chaw yug khoom. Nws yog qhov zoo tagnrho ntawm ntug kev lag luam rau kev lag luam xws li kev thauj khoom maritime, roj drilling, thiab cua lub zog txij nkawm.
YFM Jib Deck Crane Ad Ad Adopts Lub Zog Hydraulic, Ua ke nrog kev tsim khoom zoo niaj hnub. Nws siv cov khoom siv siab-tiv thaiv huab cua-resistant steel cov ntaub ntawv thiab tau pom zoo rau kev siv cov nkoj uas xav tau hauv cov nkoj lossis ntawm cov hlab ntsha.
Cov ntsiab lus zoo
✅ Load muaj peev xwm
Deters npog qhov dav-thaj chaw ua haujlwm
Diesel \/ Hydraulic \/ Electric tsav
✅ 360 Degree tag nrho kev sib hloov tsim
✅ Tus qauv tagnrho-steel yog kho nrog kub-dip galvanization \/ marine-qib anti-corrosion txheej
✅ Ua raws li cov qauv kev lag luam thoob ntiaj teb xws li ISO 4308 thiab DNV-GL
✅ Kev tiv thaiv dhau muaj kev tiv thaiv kab ke
✅ Cov Ntaus Thaum Muaj Xwm Ceev Thaum Muaj Xwm Ceev
✅ Xaiv xaiv cov chaw taws teeb tswj lossis kev siv tshuab ua ke interface

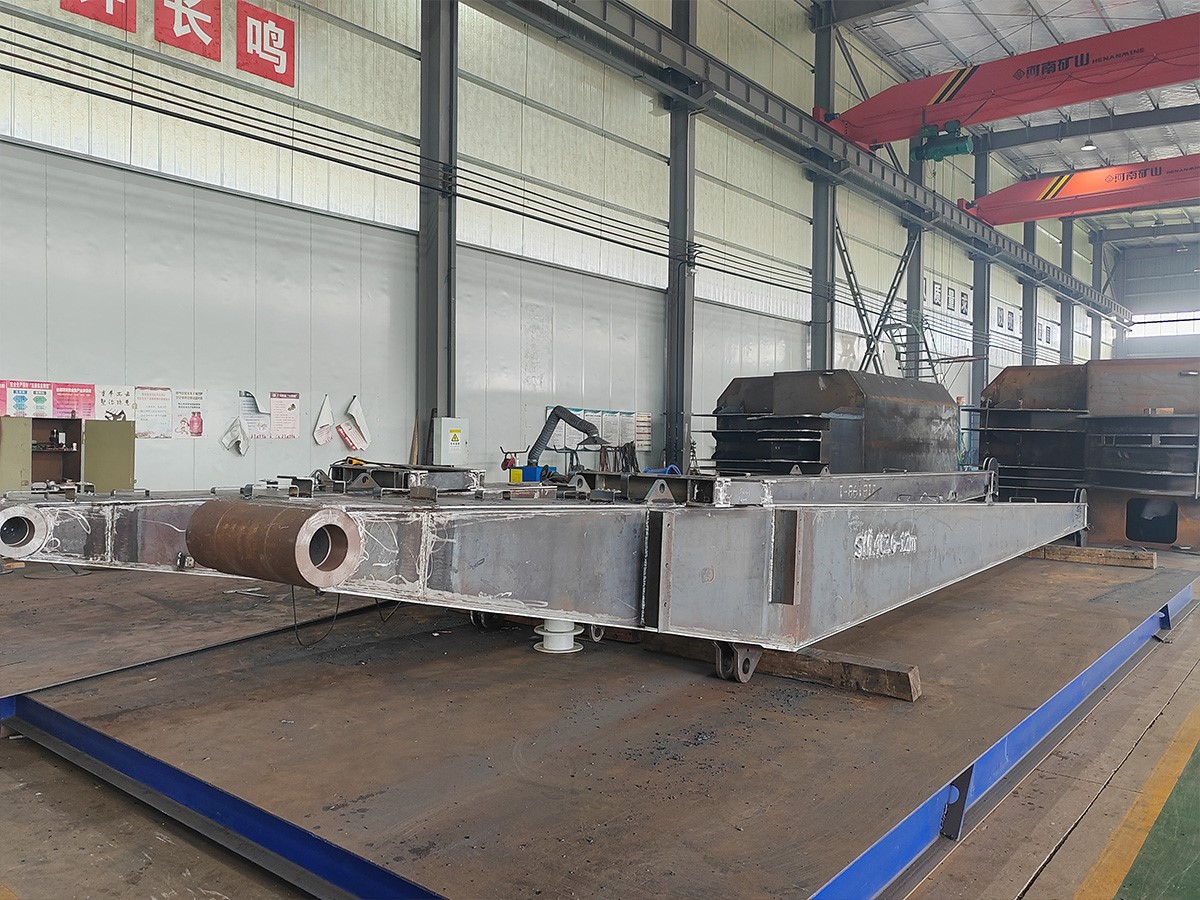

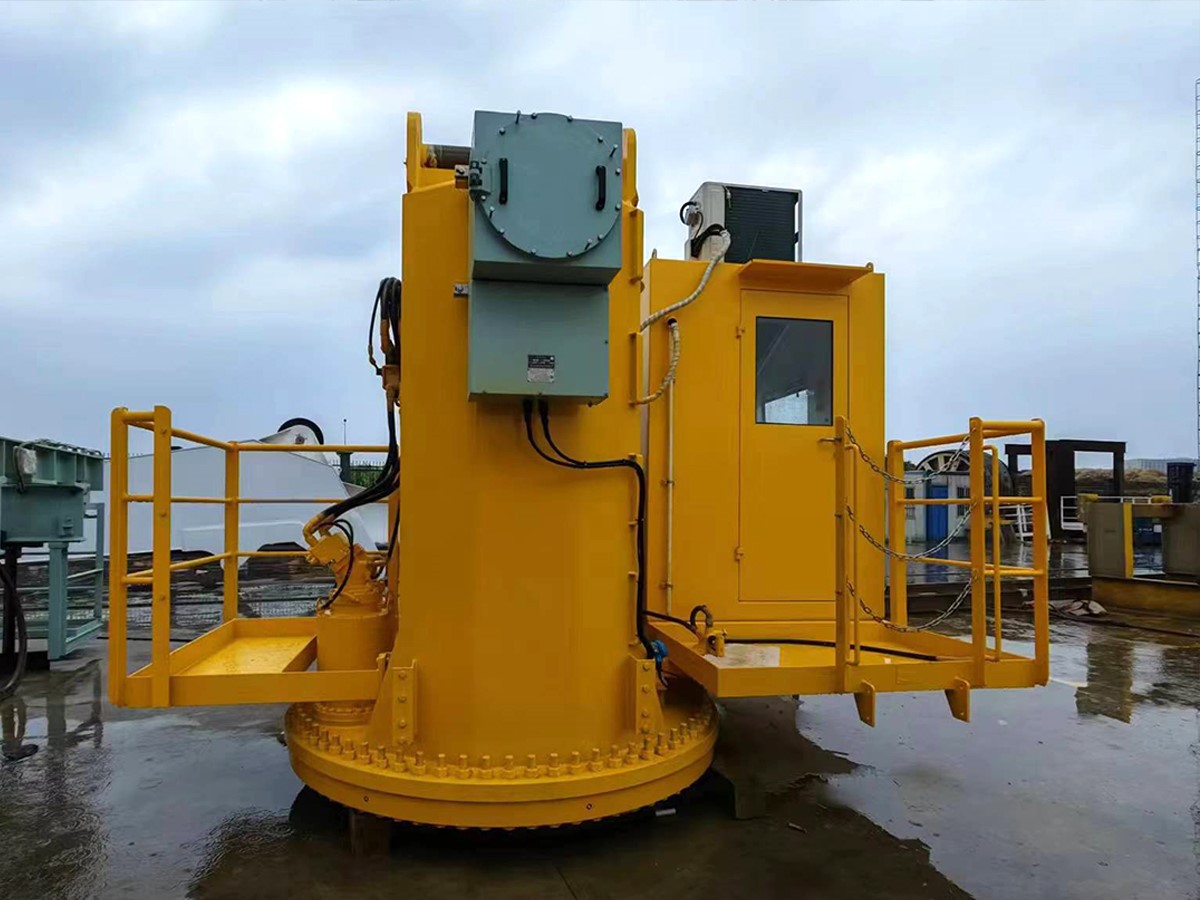

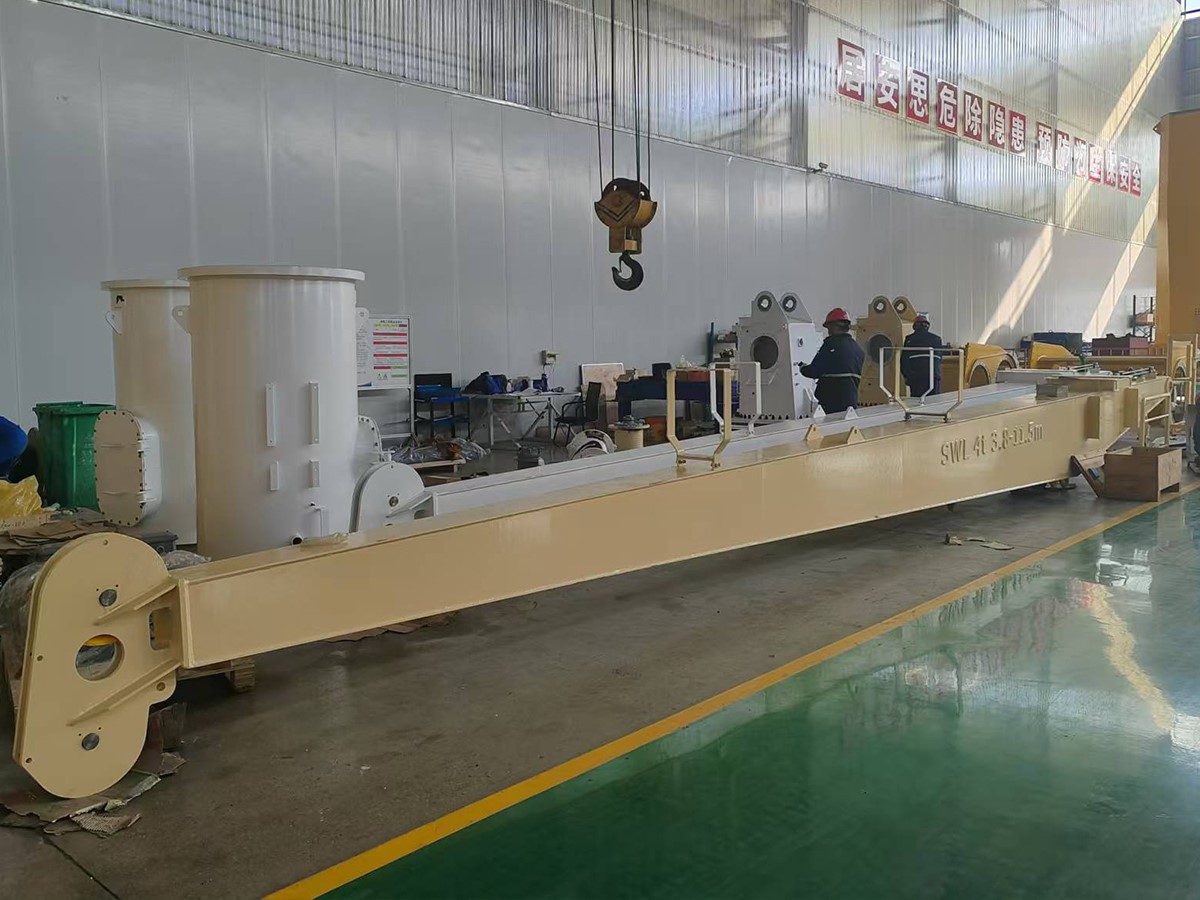

kev tsim ua

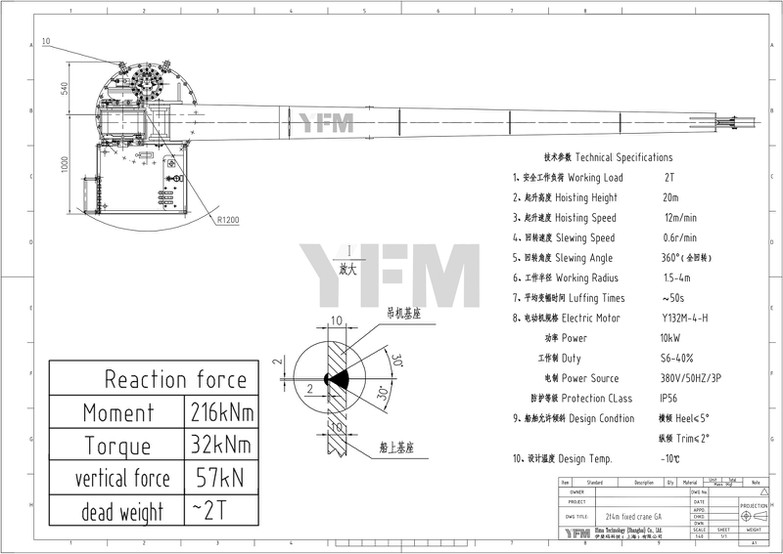

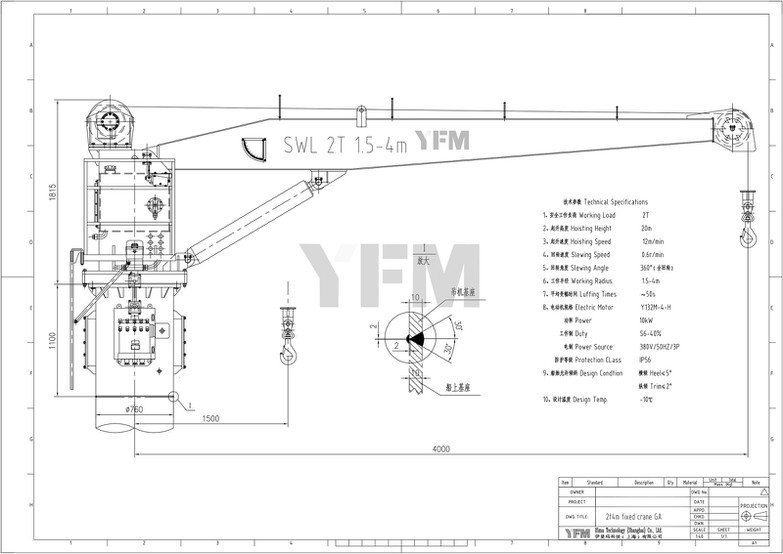

2t 4m Jib Lawj Crane Rau Cov Neeg Siv Khoom
Lub ntsiab kev tsis sib xws
Cua ceev: Max. (Lub sijhawm ua haujlwm): 20m \/ s; Max. (Thaum tsis ua haujlwm): 50 m \/ s.
Kev tswj: Los ntawm phau ntawv platform, chaw ua haujlwm cav, lossis chaw taws teeb.
Daim Ntawv Pov Thawj: CCS, ABS, BV, lossis raws li koj cov kev xav tau.
| Ua Haujlwm Load | 2T | Slewing ceev | 0. 6r \/ min | ||
| Ua haujlwm vojvoog | 1.5-4m | Slewing Angle | 360 degree | ||
| Hoisting ceev | 12M \/ min | Luffing Sijhawm | ~50s | ||
| Hoisting qhov siab | 20m | Tsim Qauv Tsim. | {{0 {}} degree ~ +40 degree | ||
| Qauv Qauv | Txiav | Tsawg dua los yog sib npaug rau 2 degree | Lub cev muaj zog hluav taws xob | Y132M-4-H | |
| Luj taw | Tsawg dua los yog sib luag rau 5 degree | Lub cev muaj zog | 10kw | ||
| Tshuaj tiv thaiv | Nyiaj se | S6-40% | |||
| Ib pliag | 216knm | Lub zog | AC, 380V, 50Hz, 3p | ||
| Torque | 32KM | Kev tiv thaiv chav kawm | Txivt6 | ||
| Ntsug quab yuam | 57kn | Chav Kawm Rwb Thaiv Tsev | F | ||
| Ntug tuag | 2T | Khoom Siv Hluav Taws Xob Hom | Chint, Siemens, Schneider, thiab lwm yam. | ||
Muab kev pab cuam tom qab.
- On-site teeb tsa, debugging, thiab kev qhia.
- Kev tu lwm yam thiab kho cov kev pab cuam.
- Yees duab kev txhawb nqa.
- Kev xa khoom seem.
Daim Ntawv Thov Kev Pab Cuam
- Nkoj Cargo tuav (ntim, khoom Cargo, khoom siv)
- Cov khoom nqa ntawm offshore roj platform
- Cua Fais Fab Ua Haujlwm
- Kev thauj mus los luv luv ntawm cov chaw nres nkoj thiab cov khoom noj
Cov Kev Pabcuam Customized
Peb muab cov kev xaiv teeb tsa hloov tau: customization ntawm load muaj peev xwm, boom ntev, thiab hom kev sib hloov
Kev yoog raws ib puag ncig tshwj xeeb xws li tawg-pov thawj thiab tsawg-kub
Txuam ntawm hom logo thiab xim qauv xim
Tau txais cov lus thiab cov ntaub ntawv xov xwm nyem kom hu rau peb pab pawg muag khoom, thiab peb yuav muab koj cov kev daws teeb meem rau koj!
