--- Rau kev nqa cov lim dej, lub neej lub neej, rhibs, patrol nkoj, rovs, thiab lwm yam.

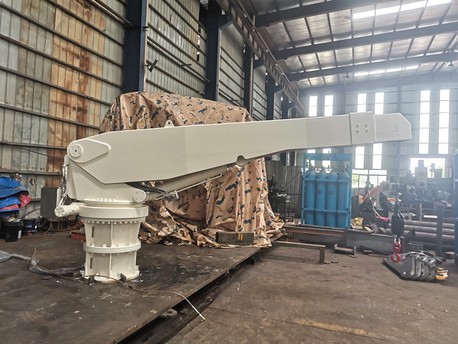

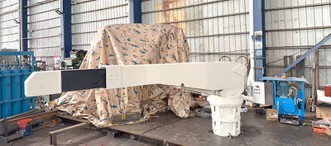

YFM yacht crane yog tsim rau cov khoom kim heev, cov nkoj lag luam, thiab cov haujlwm sab nraud. Nws sib xyaw ua ke engineering cov tshuab tshuab nrog cov qauv ntse tshaj plaws nrog ISO 9001 thiab yog ib qho kev ntseeg siab rau Yacht clubs, nkoj, thiab cov nkoj nkoj.
Qhov saum npoo ntawm yacht crane tus qauv hlau yuav tsum tau muab sandblasted kom tshem tawm xeb thiab zeb nplai, thiab tom qab ntawd kub-dip galvanized. Thaum kawg, ib txheej ntawm polyurethane ua kom tiav cov xim yuav tsum tau txau. Cov yeeb yaj kiab qhuav tuab ntawm cov xim tiav yog 65μ.

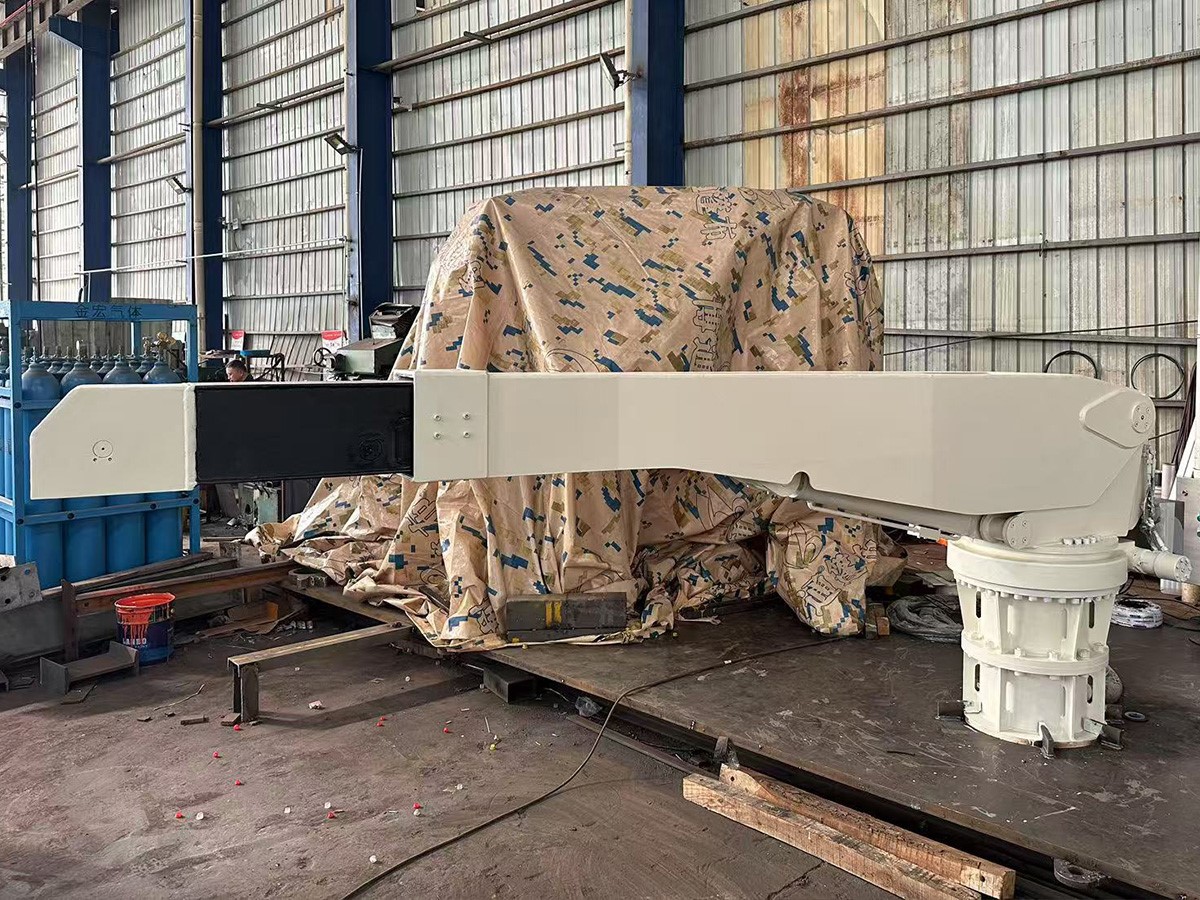

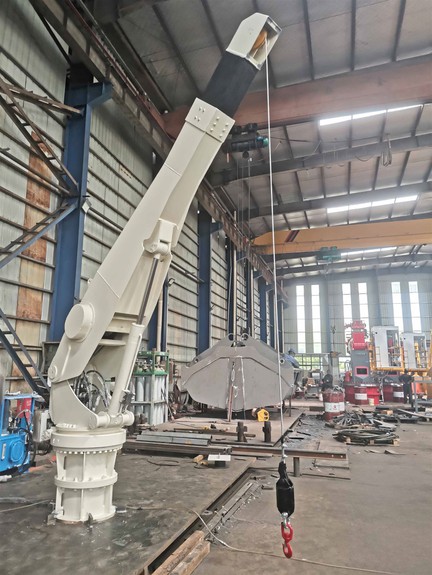

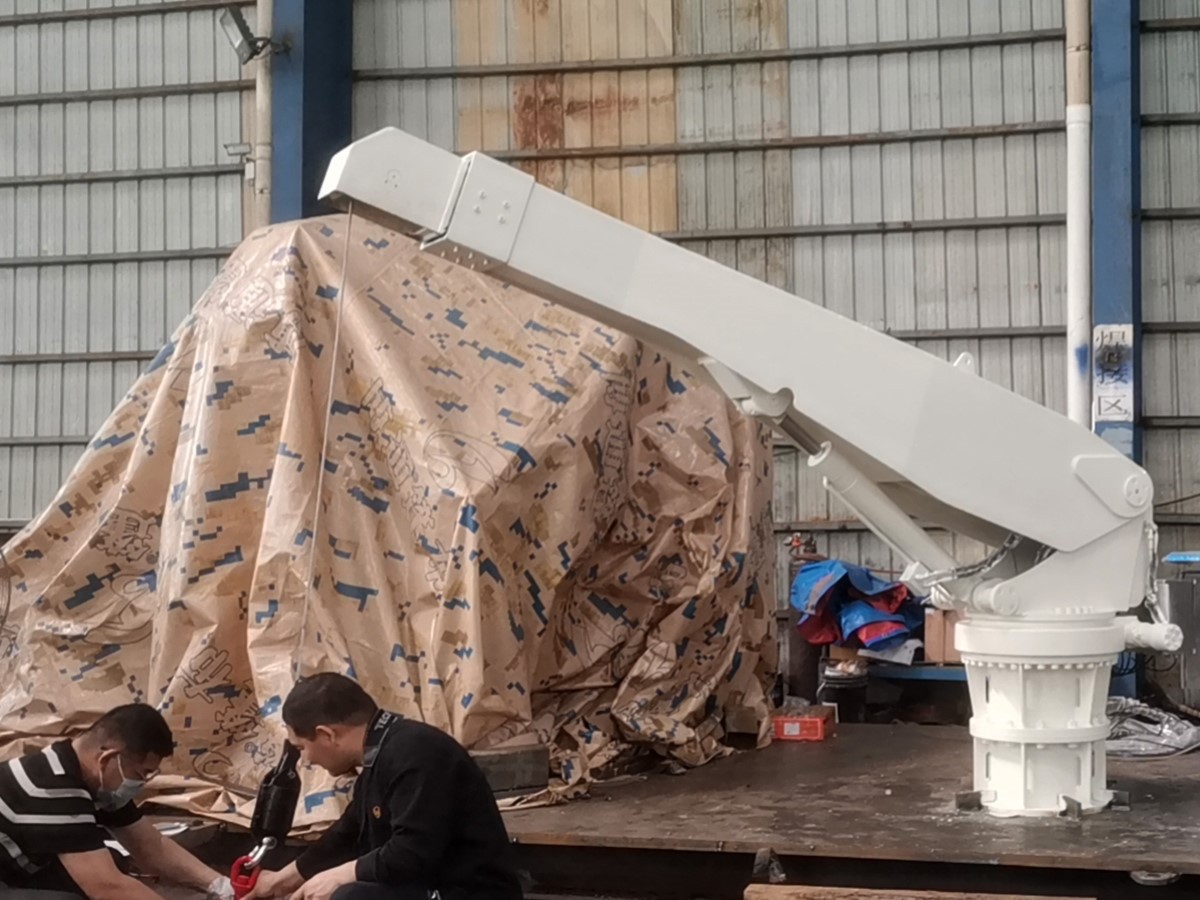

Kev tsim ua

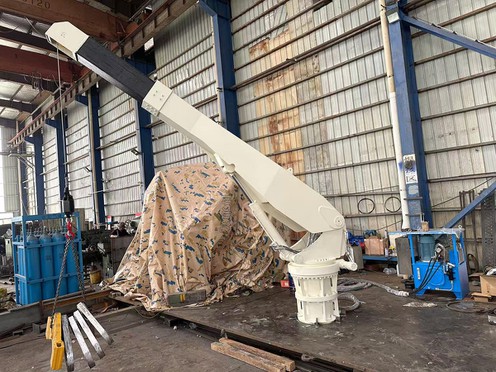

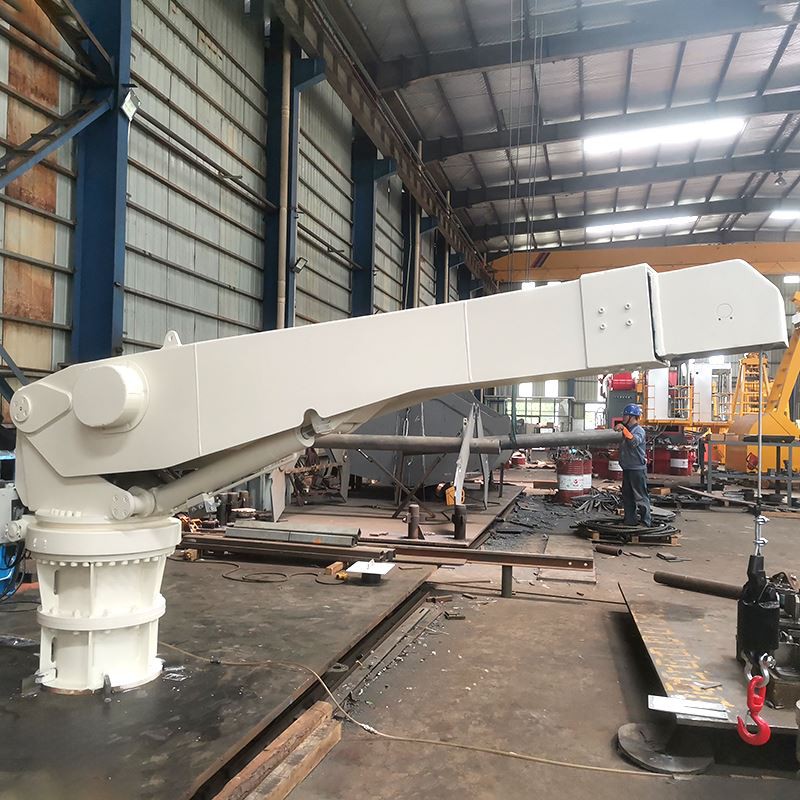

Nov yog Yacht crane Mekas raws li cov neeg siv khoom lag luam. Nws ua raws li CE thiab CCS cov qauv thiab raug ntsia rau ntawm cov kab hlau ntawm lub yacht lawj nrog qis dua thiab rov qab ua kom muaj cov maus taus.

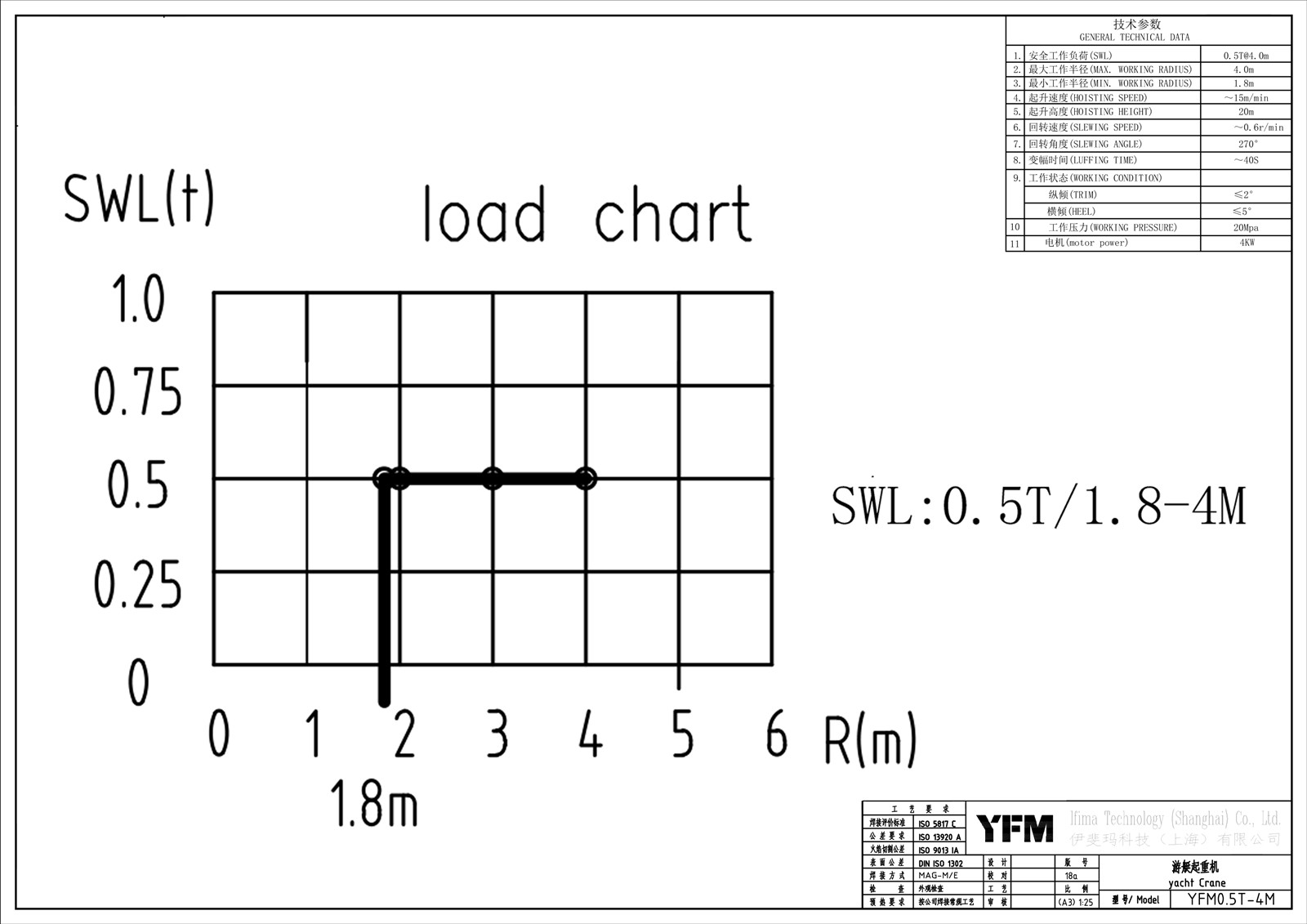

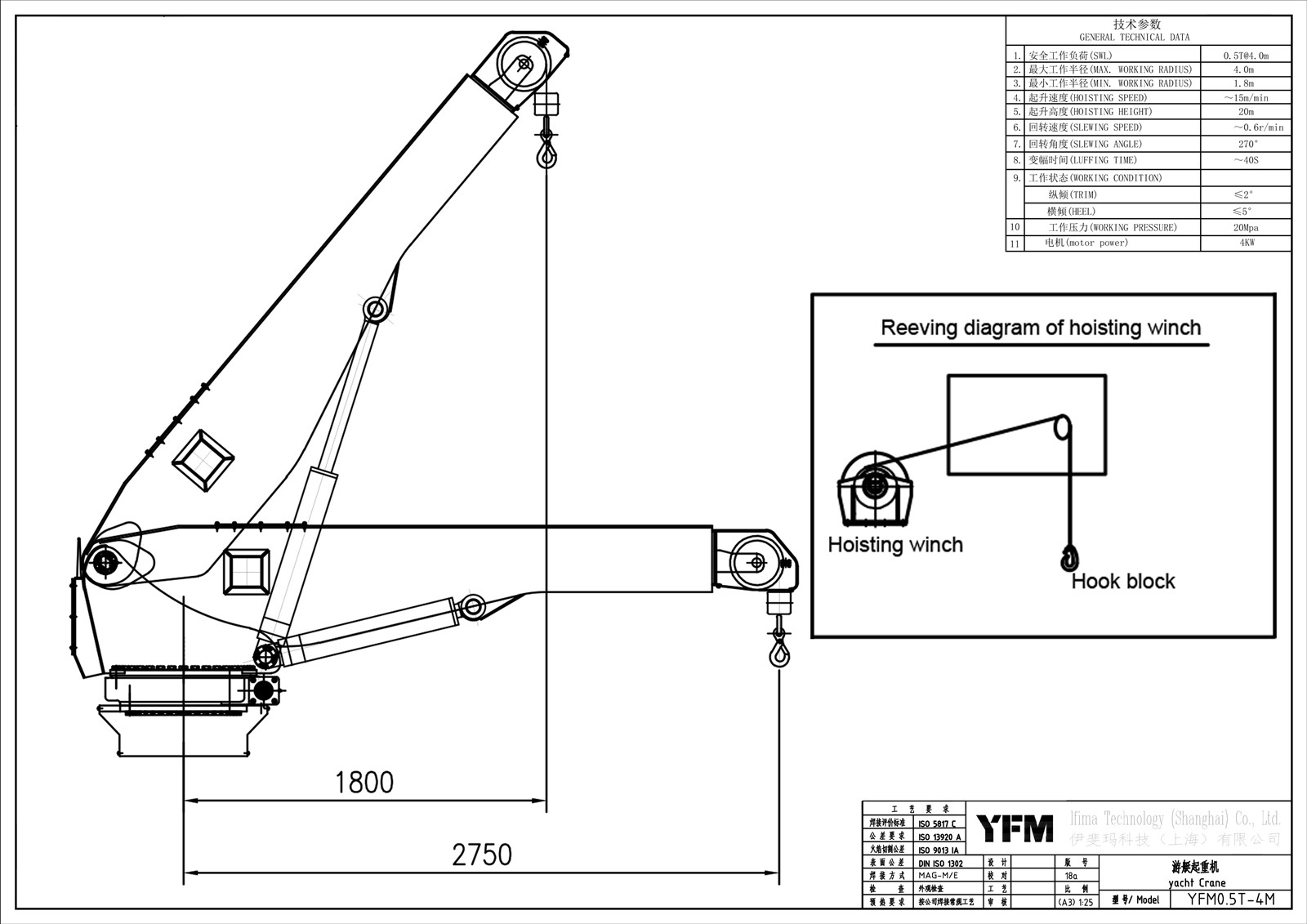

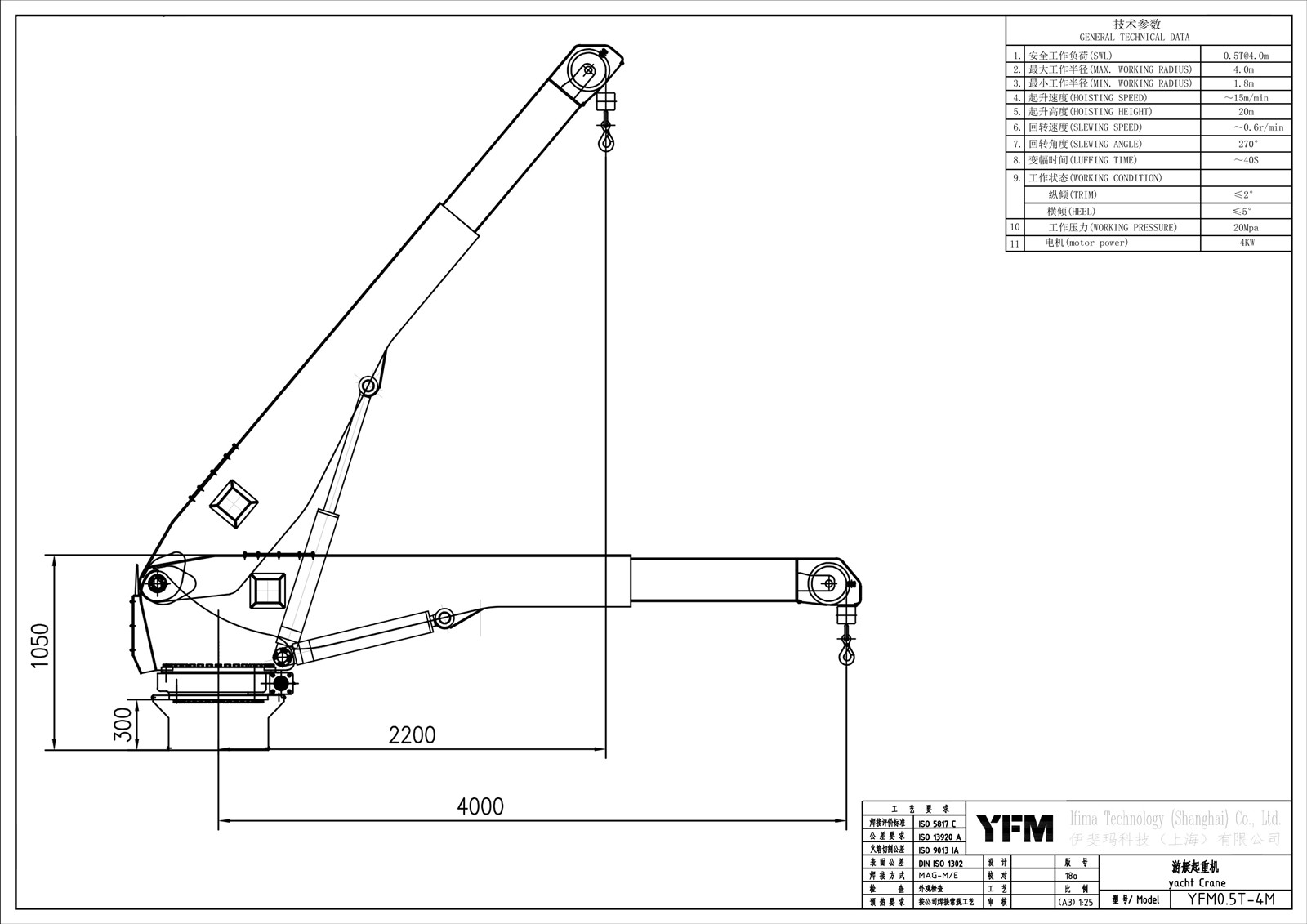

Cov ntaub ntawv tseem ceeb
| Khoom | yacht crane | |
| Tus qauv | Yfm 0. 5t -4 m | |
| Serialno. | Yfm 25-0401 | |
| Swl | 0.5t | |
| Max. ua haujlwm vojvoog | 4m | |
| Kev mus ncig nuv | 20m | |
| Hoisting ceev | 0 ~ 15m / min | |
| Slewing ceev | ~ {0. 6 / min | |
| Ntug tuag | ~1.25T | |
| Slewing Angle | 360. | |
| Lub cev muaj zog | 4KW | |
| Kev Tsav Ceev | 1470r / min | |
| Hluav taws xob system | 380V, 50Hz | |
| Kev tsis muaj peev xwm qib | F | |
| Tiv thaiv qib | Li cas | |
| Kev Ua Haujlwm | Luj taw | Tsawg dua los yog sib luag rau 5 degree |
| Txiav | Tsawg dua los yog sib npaug rau 2 degree | |
| Tsev hauj lwm kub | {{0 {}} degree ~ +40 degree | |
| Yacht Crane Cov Khoom Loj | 3.65m x 1.16m x 1.54m | |
| Hydraulic System cov ntim | 0.95m x 0.6m x 1.46m | |
Lub ntsiab tseem ceeb

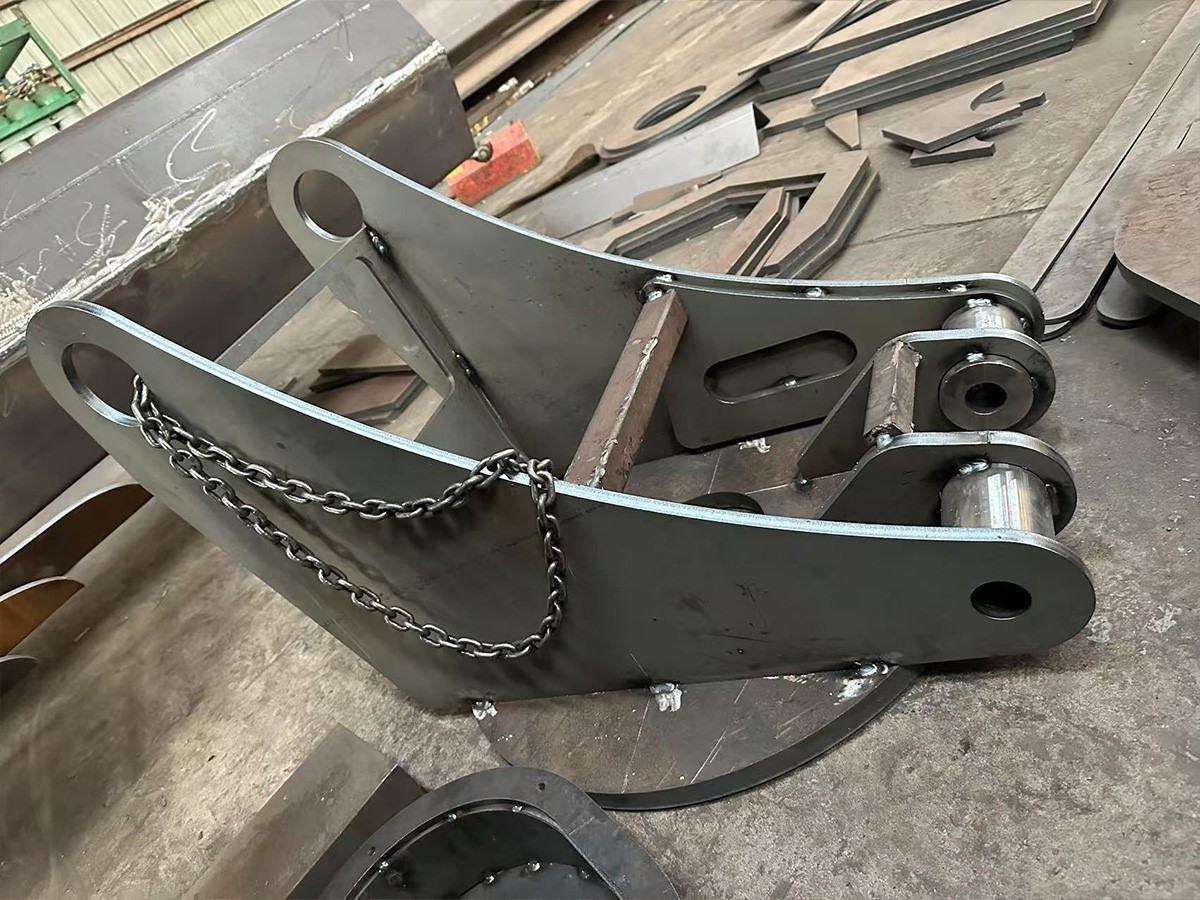

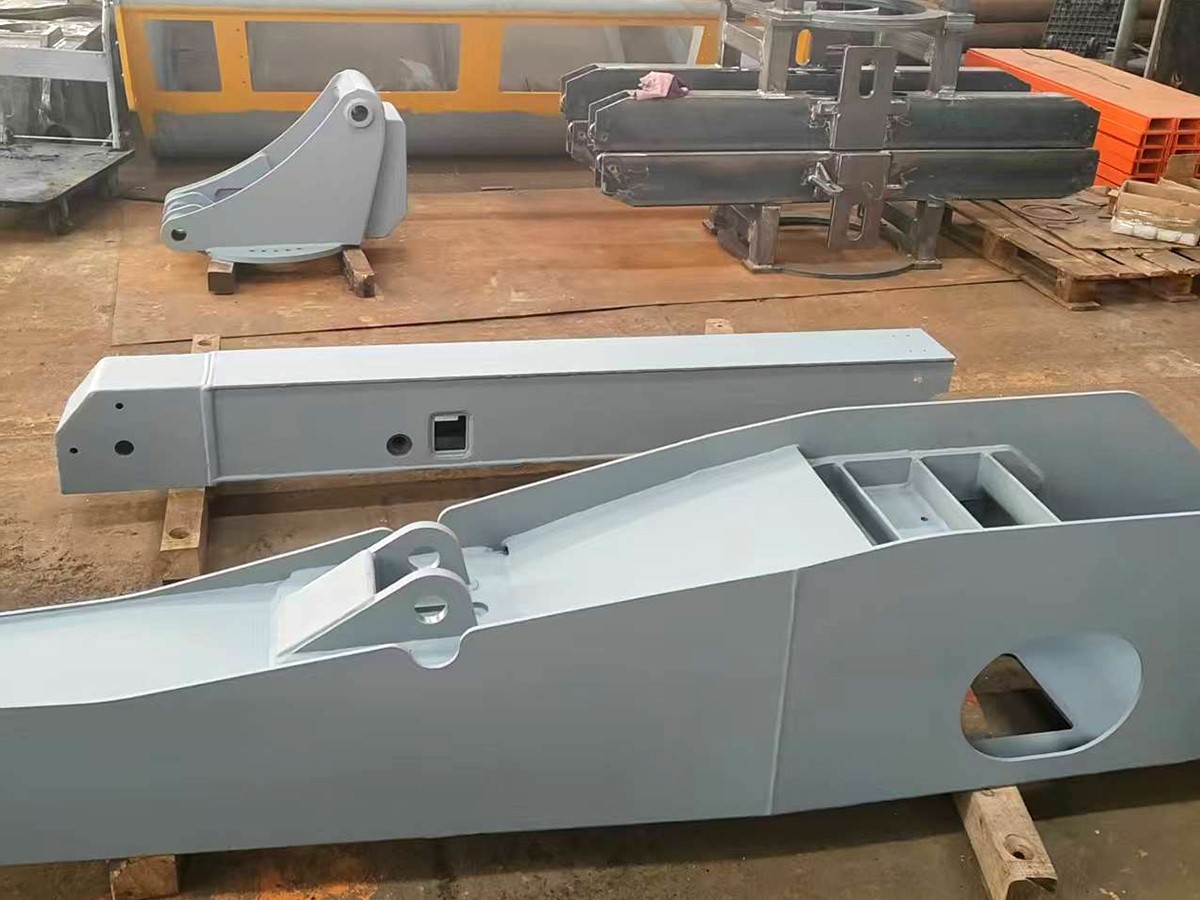

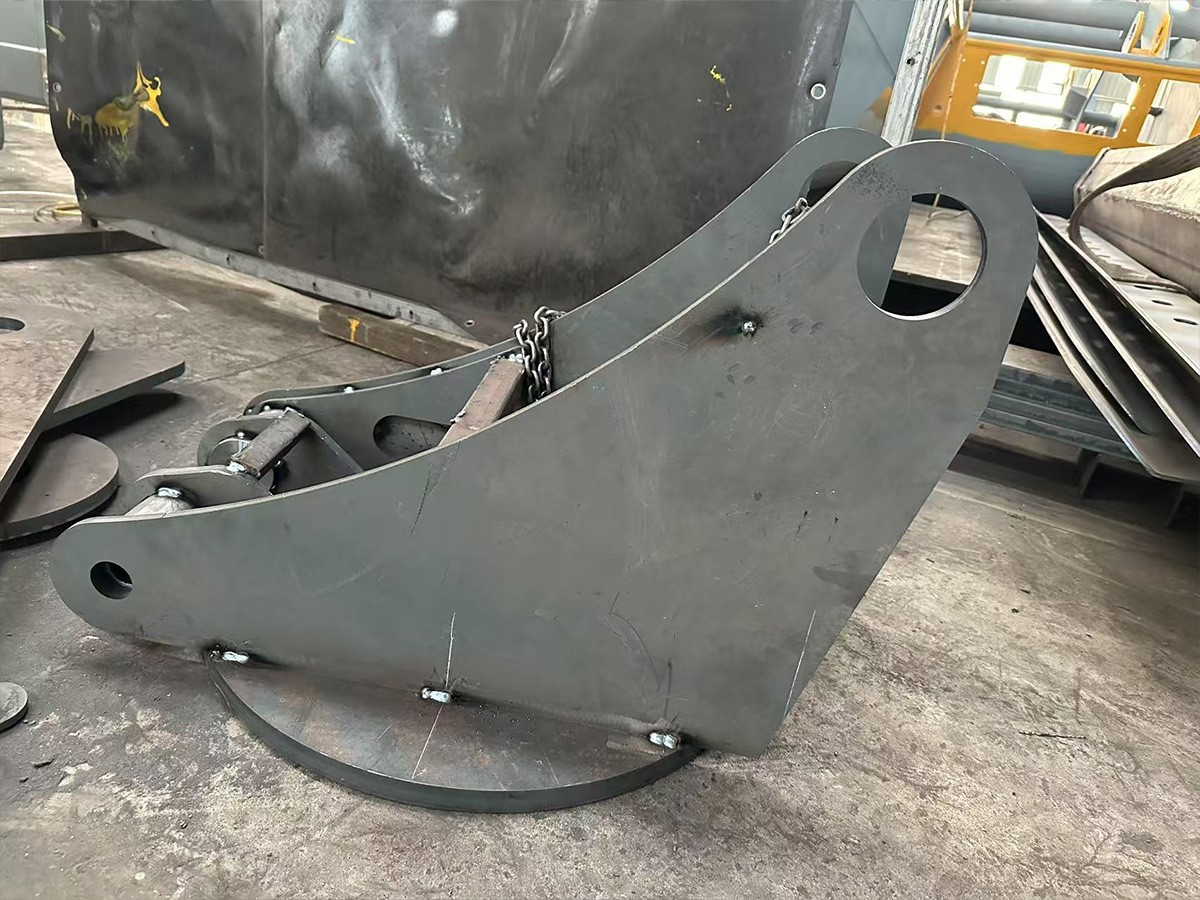

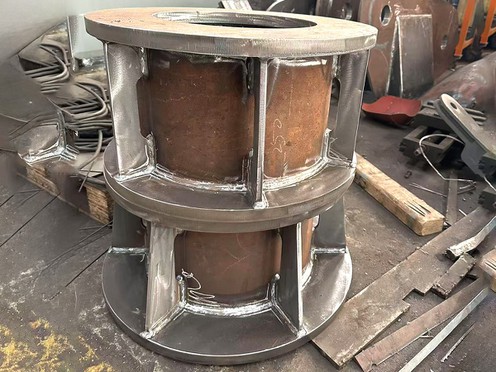

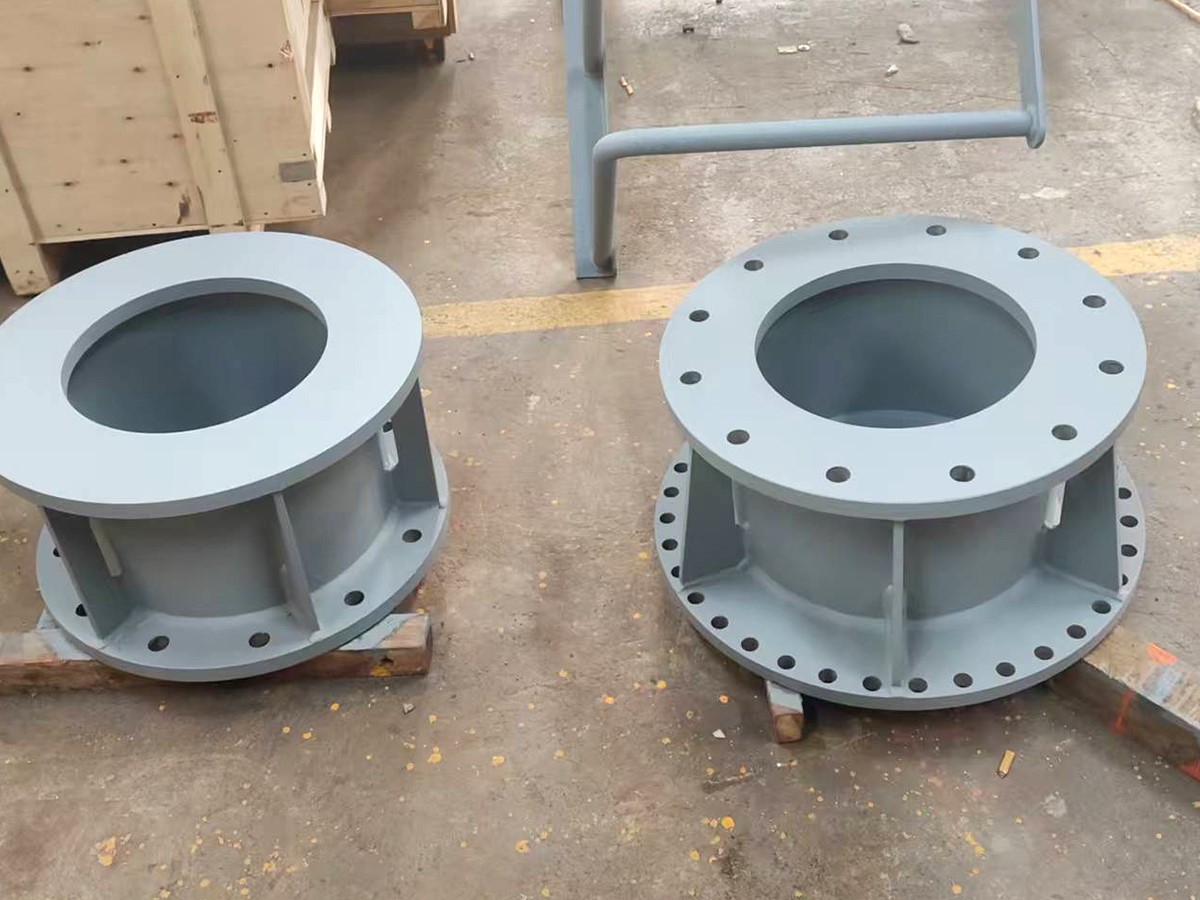

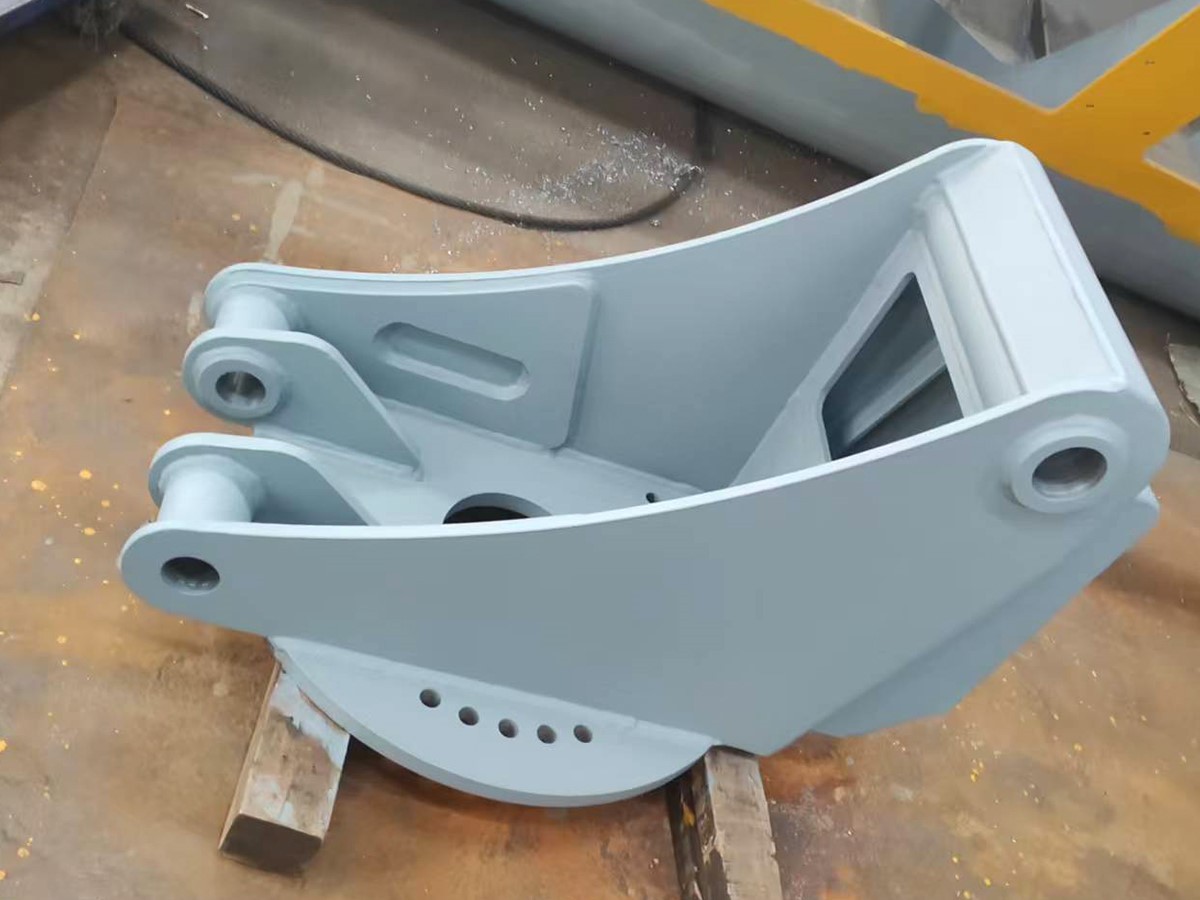

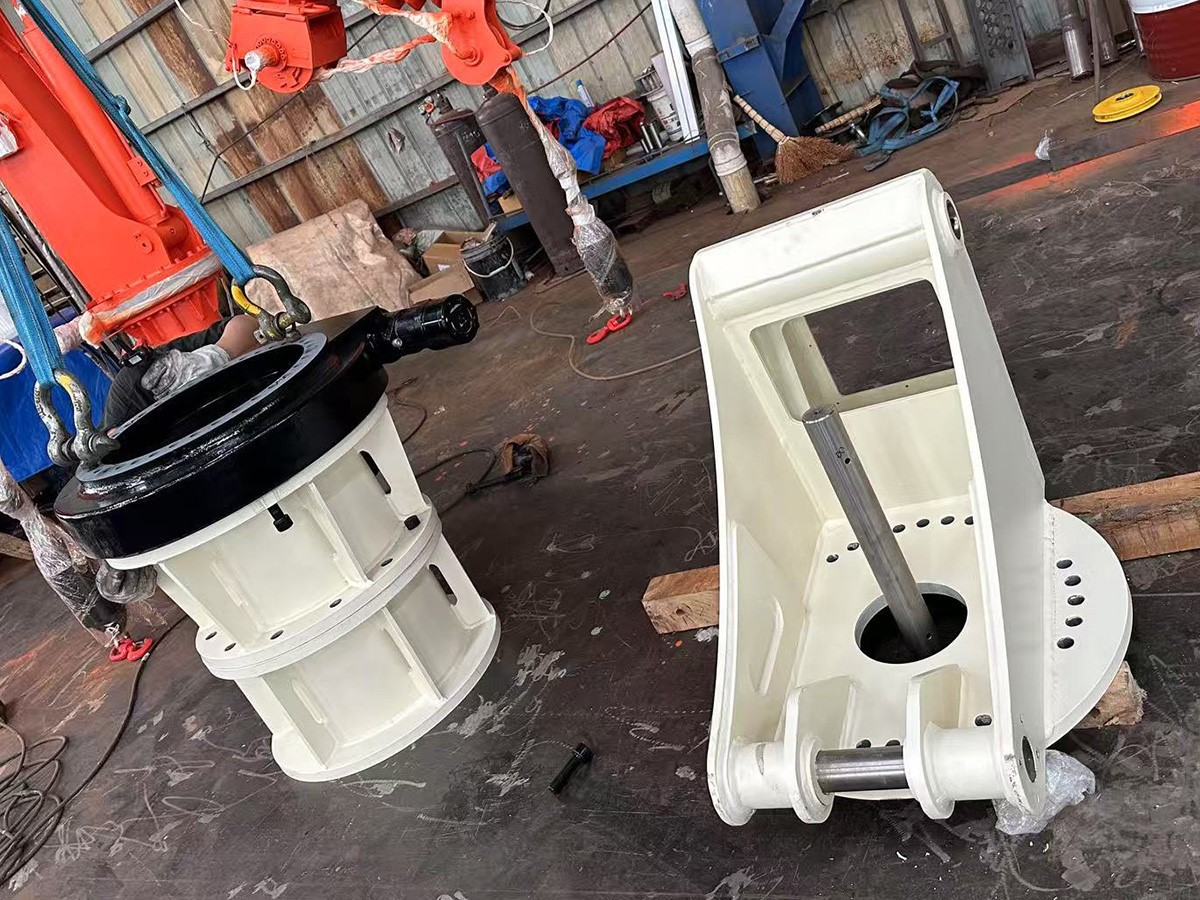

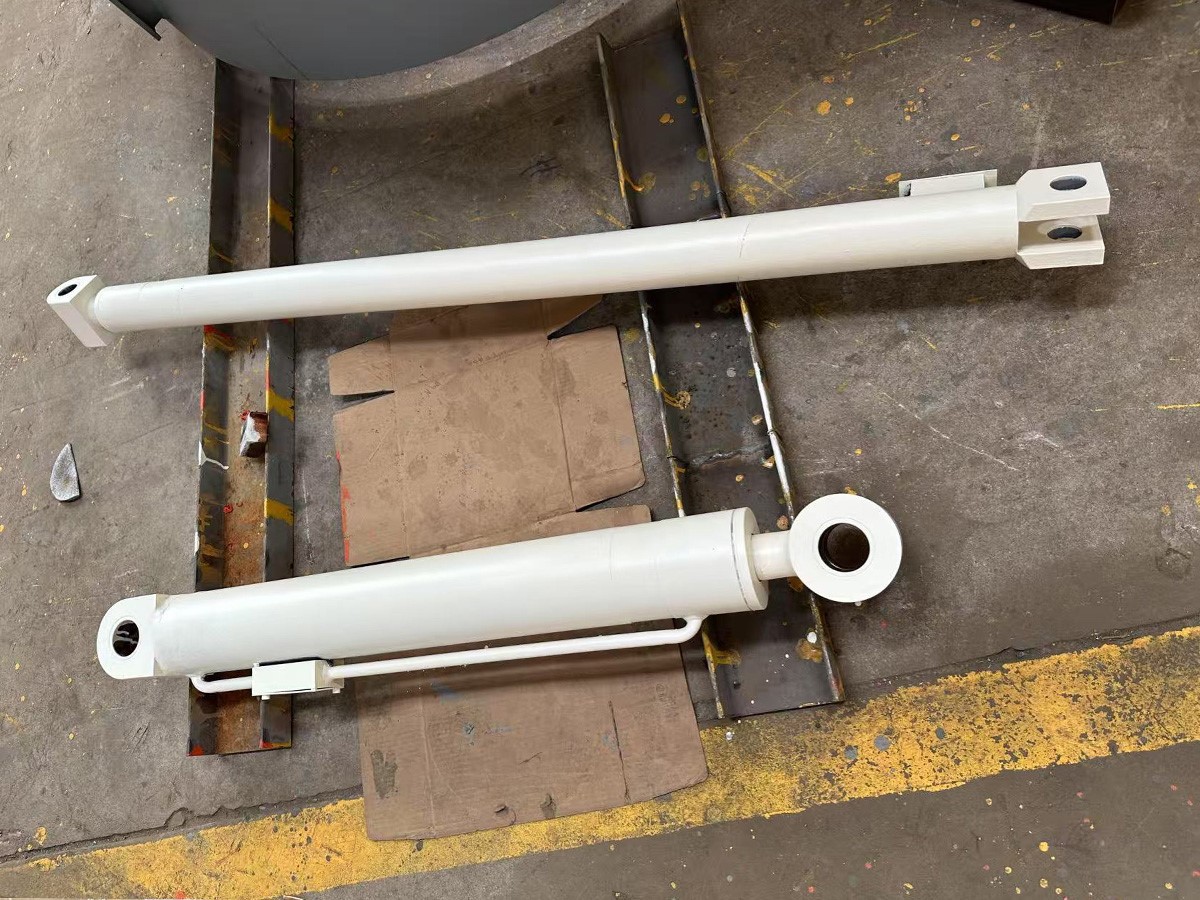

1, Pedestal 2, Crane Sab, 3, Boom 4, Tswj Chaw Nres Tsheb 5, Hydraulic Lub Tog Raj Kheej
Hydraulic Fais Fab Pob
| 1 | Roj Tank |
| 2 | Xuj |
| 3 | Hwjchim |
| 4 | Kev tuav tshuab |
| 5 | Cua lim |
| 6 | Roj Lim |
| 7 | Roj Txheej Txheem |
| 8 | Siab Tag Ntsoov |
| 9 | CUA TXIAS |
| 10 | Phab Ntsa Thaiv |

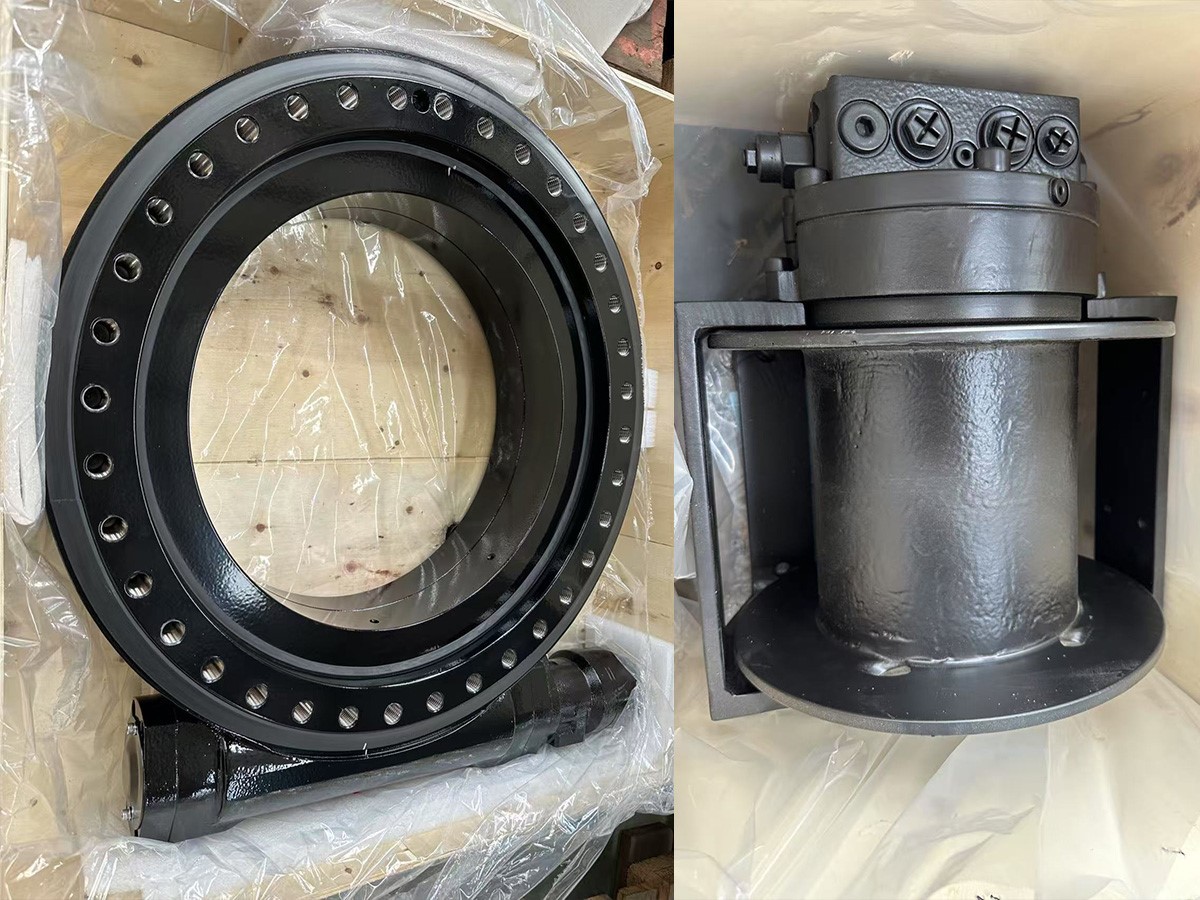

| 11 | Tus tsav tsheb muaj slewing |
| 12 | Liov kheej kheej kheej |
| 13 | Ib lub dab tsi uas qhib thiab kaw |
| 14 | Ib-txoj kev throttle valve |
| 15 | Telescopic kheej kheej |
| 16 | Ib lub dab tsi uas qhib thiab kaw |
| 17 | lub rub khoom |
Qhov Tseem Ceeb
- Ua raws cov qauv ntawm CCS
- Ua los ntawm High-zog-lub zog-qib-tus stainless hlau / txhuas alloy khoom, nrog corrosion tsis kam nce 60%
- Dual Brakaking System
- Overload Kev Tiv Thaiv Ntaus
- Dhau qhov {72- teev ntsev tsuag tshuaj
- Yeem tsis muaj zog yooment system (yeem), haum rau kev ua haujlwm hauv hiav txwv tej yam ntawm hiav txwv 4
- Yeem ua haujlwm console tswj / chaw taws teeb tswj / cab tswj
- Modular qauv, txo lub sijhawm txij nkawm los ntawm 40%
- Modular tsim yog qhov tsim nyog rau kev teeb tsa ntawm ntau lub decks / piers
- Customizable Kev Hloov Lub kaum sab xis (180 Degree / 360 degree) thiab sab caj npab ntev (3m {3}} m)
- Ib tug ultra-ntsiag to version (< 65dB) is launched for superyachts
Qhov xwm txheej thov
✓ Tshaj tawm thiab kev ua haujlwm ntawm yachts
Xav Txog Lub Nkoj Txij Nkawm
✓ Offshore khoom xa
✓ Kev pab thaum muaj xwm txheej ceev
Vim li cas thiaj xaiv peb?
✅ 10 xyoo kev paub hauv cov khoom siv marine raug
Goster Ntiaj teb Kev teb nyob hauv 48 teev
{3-} xyoo warranty rau cov ntsiab lus tseem ceeb
✅ Muab cov duab kos cad + teeb meem kev teeb tsa
