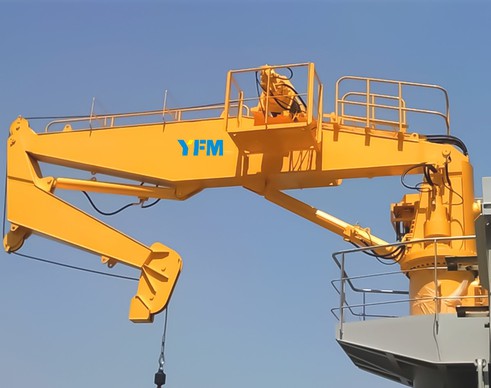

Knuckle Qhob Crane
--} txuag, hloov tau, thiab txhim khu kev qha decks
YFM Knuckle POB CANE yog tsim rau cov nkoj, lub platform sab nrauv, thiab ib puag ncig marine. Nws tuaj yeem ua tiav cov khoom thauj khoom, cov cuab yeej teeb tsa, thiab cawm cov qauv kev ua kom sib txuas, muaj tswv yim tshuab siab ntse, thiab cov qauv teeb tsa mycenuellation.
Tus neeg tua neeg crane tus tshwj xeeb khawm kev tsim qauv ua tiav ntau qhov kev ua haujlwm ntau tshaj plaws hauv chaw, txuag 30% ntau qhov chaw cim ntau dua li yav dhau los. Qhov no ua rau lub khawm knuckle boom crane txoj kev xaiv zoo tagnrho rau kev ua haujlwm ntawm ntug.
Nyob rau hauv cov xwm txheej nyuaj thiab yefm kneuckle qhob crane kuj tau txais kev pab cuam nquag
Khoom nta
- Cab \/ Wireless Cov Chaw Taws Teeb Kev Xaiv Xaiv
- Multi-sib koom tes knuckle boom qauv, txuag cov lawj chaw
- Hluav Taws Xob \/ Hydraulic Drive, Txhawb Nqa 360 Sach degree
- Kev thauj khoom ntawm 1 tuj mus rau 100 tons (customizable)
- Muaj Zog-Zog Hlau - IP66 Kev Tiv Thaiv Kev Ntsuas
- Anti-corrosion txheej
- Ntsev tsuag tsuag corrosion tsis kam
- Cua thiab yoj tsis kam mus rau beaufe nplai 8
- Ntawv pov thawj los ntawm cov koom haum thoob ntiaj teb xws li DNV-GL, Rina, BV, CCS, Rs, Abs, thiab lwm yam.
- CC tswj vaj huam sib luag
- Xaiv kev them nqi zog siv zog (DCS)
- Modular tus qauv
- Ntau cov khoom siv tiv thaiv kev nyab xeeb
Kev vam meej tsim cov dab neeg

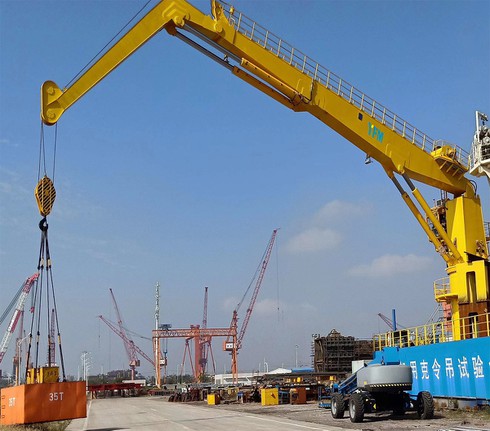

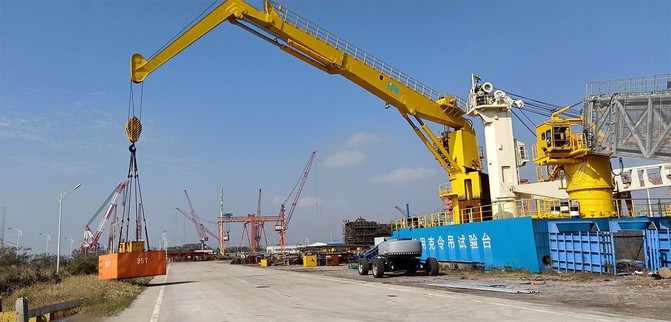

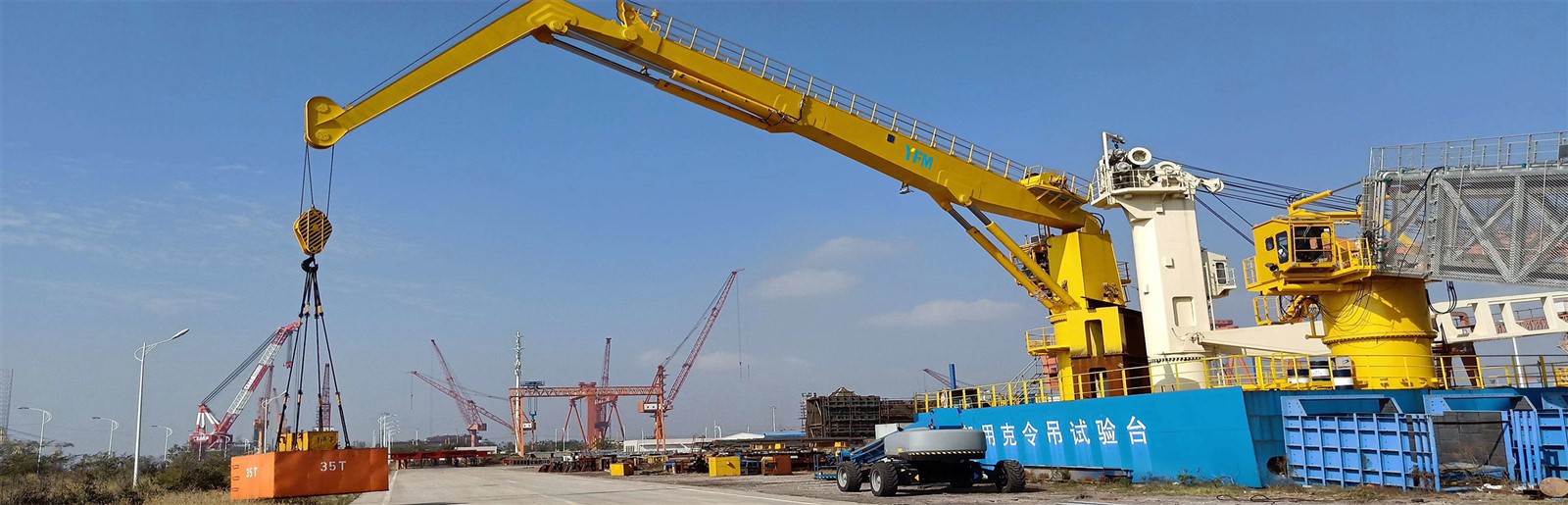

35T Electro-hydraulic Boom Offshore Crane C \/ W AHC system
Qauv Qauv
1. Ntawv pov thawj: 1. "Phau Ntawv Pov Thawj ntawm Lifting Appians" los ntawm ABS, 2013
2. Tus Qauv Tsim Lub Neej: Crane tus qauv tsim yog raws li lub neej ntawm 20 xyoo.
3. Nqa Cov Lus Txhais:
- Nqa ntawm cov hlab ntsha thiab quatside nyob rau hauv cov chaw dej nyab, piv txwv li, chaw ua phem nqa,
- Nqa ntawm lub nkoj ntawm lawj, piv txwv li, nqa sab hauv
- Nqa khoom los ntawm cov hlab ntsha mus rau lub kaus. Txoj kev nkhaus ua ke yuav muab tawm
- Nqa mus rau tob hauv dej, cov nyiaj yug me nyuam ntxiv, txo cov lus saum toj saud nrog hydrodynamic rog thiab ntxiv buerynancy ntawm lub nra
- Nqa mus rau tob hauv dej hauv cov nquag tua hluav taws, AHC nqa dav dav
Qhov kub thiab txias:
1. Kev ntsuas kub tsim: -10 degrees Celsius
2. Ofrient kub: {-20 rau +45 degrees Celsius
3. Cua cov xwm txheej: raws li cov tseev kom muaj ntawm cov koom haum koom nrog
4. Ib puag ncig cov huab cua: siab salinity
5. Vaum: txheeb ze 85%
Cov ntaub ntawv txheej txheem
| Slewing Angle | <350º | Luffing Sijhawm | 100s nce \/ nqis | ||
| Slewing ceev | {{{0}} ~ 0.7rpm | Chaw thau khoom rog rau lawj qauv | |||
| Dynamic Factor (DAF) | 1.4 | Dynamic Odurning Lub Sijhawm | 9500 kn.m | ||
| Ntxiv Safetor Factor (SFI) | 1.4 | Dynamic Ntsug Yuam | 1200 KN | ||
| Rau Searing System & Foundation (DAF + SFI) | 2.0 | Dynamic kab rov tav | 185 KN | ||
| Cov ntaub ntawv Winch Winch | Lifting muaj peev xwm (SWL) | 35T@12m,20T@20m | AUX Winch Cov Ntaub Ntawv | Lifting muaj peev xwm (SWL) | 5t nrog 1.5T tus txiv neej caij muaj nuj nqi |
| Hlau Caij Nplooj | 1 | Hlau Caij Nplooj | 1 | ||
| Ua haujlwm vojvoog | 5. {{0 m (min) \/ 20m (max) | Ua haujlwm vojvoog | 5.2m (min) \/ 22m (max) | ||
| Main Lifting Ceev (Li Qub) | {{0 {}} ~ 20m \/ min (35t) | Main Lifting Ceev (Li Qub) | 0} ~ 60m \/ min (tag nrho thauj) | ||
| {{0 {}} ~ 50m \/ min (lub teeb thauj) | |||||
| Nruas Peev Xwm | 2000m | Nruas Peev Xwm | 110m | ||
| Kwv Txhiaj Mus Ncig | 1700m | Kwv Txhiaj Mus Ncig | 100m | ||
| Sau \/ trim mob | 5º/2º | Sau \/ trim mob | 5º/2º | ||
| Hlau Hlau Dia | 44mm | Steel Hlau Dia. | 19 hli | ||
| Txheej txheej sab nraud, puv puv | 35T | Txheej txheej sab nraud, puv puv | 5T | ||
| Cov hlua hlau | Anti-Twist Hom, Galvanized | Cov hlua hlau | Anti-Twist Hom, Galvanized | ||
| Kab txaij txoj kab ke (sab nraud) | 2800mm | Pedestal Phab Ntsa Thickness | 20 hli | ||
Nco tseg: Txhua qhov kev ua haujlwm nrawm dua saum toj no yog nyob ntawm nruab nrab volumetric effecties los ntawm peb cov khoom siv hydraulic. Kev nrawm dua kev thev naus laus zis ntawm +10% rau {{% yog suav nrog cov kev lees txais thiab yuav tsum tau txiav txim siab.
| Qho tob | Tseem tshuav nuv muaj peev xwm (ntub dej: t) | Kwv yees li kev xa khoom muaj peev xwm (ua kom qhuav: T) | ||
| 0 | 35 | 35 | ||
| 500 | 30 | 33 | ||
| 1000 | 25 | 28 | ||
| 1500 | 21 | 24 | ||
| 1700 | 17 | 19 | ||
Nco tseg: Hydrodynamic rog, thiab lwm yam, tsis suav hais tias nyob rau hauv cov lus no.
Cov ntaub ntawv siv heave them (los ntawm scantrol, Norway):
| 1. Kev ua yeeb yam Cashc \/ ntawm, {0} ~ 15t sml, cov ntaub ntawv them nyiaj: | 2. Kev ua yeeb yam Cashc \/ ntawm, {0}} ~ 35t SWL, cov ntaub ntawv them nyiaj yuav them cov ntaub ntawv: | ||||
| Cov qauv tsim | Cov qauv tsim | ||||
| AHC SWL | 0-15T | AHC SWL | 0-35T | ||
| Kev tshem tawm | 4m | Kev tshem tawm | 3m | ||
| Yav lub sijhawm | 10s | Yav lub sijhawm | 12s | ||
| Max Heave Nyiaj Ceev Ceev | 1.4m/s | Max Heave Nyiaj Ceev Ceev | 0.8m/s | ||

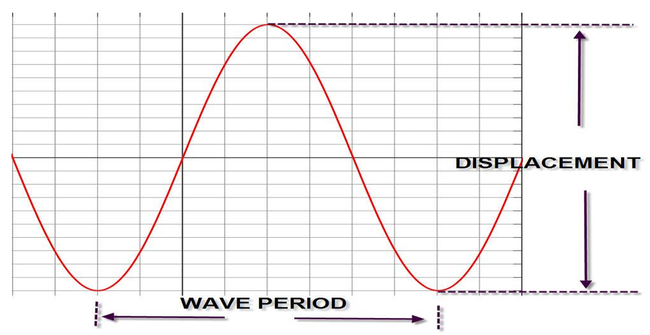

NCO TSEG: 1. Kev tshem tawm yog txhais tau tias qhov kev txav ntawm qhov chaw ntawm lub xaim xaim lub nkoj. Qhov no tuaj yeem yog lub qhov ntswg pulley ntawm lub crane los yog ib tug pulley mounted hauv ib-thav duab.
Lus Cim: Lub tshuab hluav taws xob hluav taws xob ntawm cov hluav taws xob yuav tsum muaj peev xwm tiv thaiv tau muaj peev xwm uas tau txais kev txhawb nqa los ntawm cov motors loj. Tus nqi kwv yees yog suav raws li kwv yees siab tshaj plaws tus nqi uas tshwm sim thaum txo qis ntawm qhov siab tshaj plaws load thiab lub ncov siab nyob rau AHC \/ CT ntawm qhov siab tshaj plaws thauj khoom thiab nrawm.
Raug Daim Ntawv Teev Lus
✔ Tso thiab saib xyuas ntawm Offshore cua fais fab cuab yeej
✔ Cov khoom siv rau cov roj thiab roj platform
✔ Hloov pauv ntawm cov nkoj
✔ Puas muaj kev cawm noj thaum muaj xwm txheej thiab kev ua haujlwm khaws cia
Cov Kev Pabcuam Customized
Peb muab cov kev daws teeb meem tag nrho, suav nrog:
- Thauj khoom thiab chaw soj ntsuam kev yoog
- Cov chaw ib puag ncig tshwj xeeb xws li tawg-pov thawj thiab tsawg-kub tsis kam
- Kev sib xyaw ua ke ntawm AHC (nquag chav heave them) thev naus laus zis
Vim li cas thiaj xaiv YFM?
✅ 15 xyoo kev paub hauv cov cuab yeej marine tsim, nrog ntau dua 100 kis tau zoo thoob ntiaj teb
✅ 24\/7 kev txhawb nqa thiab cov khoom xa khoom seem
✅ OEM \/ ODM Cov Kev Pab Cuam Tshuam Rau Cov Neeg Siv Khoom
